Description
Quick answer: The heavy duty warehouse guardrail beam is a single replacement or extra rail with its hardware kit. Use it to replace a damaged rail or to add a rail to an existing heavy duty post.
Rail Information (1 Qty):

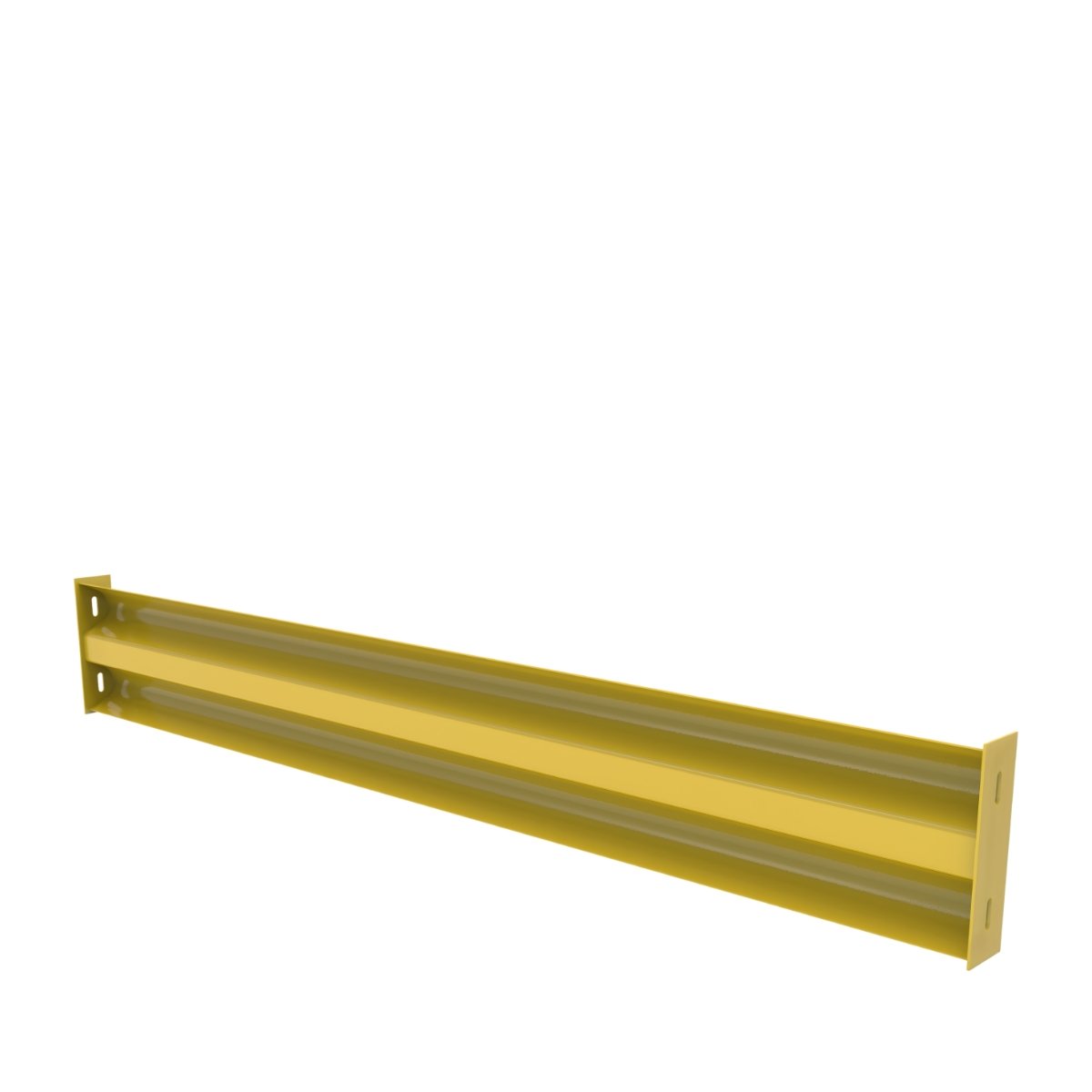

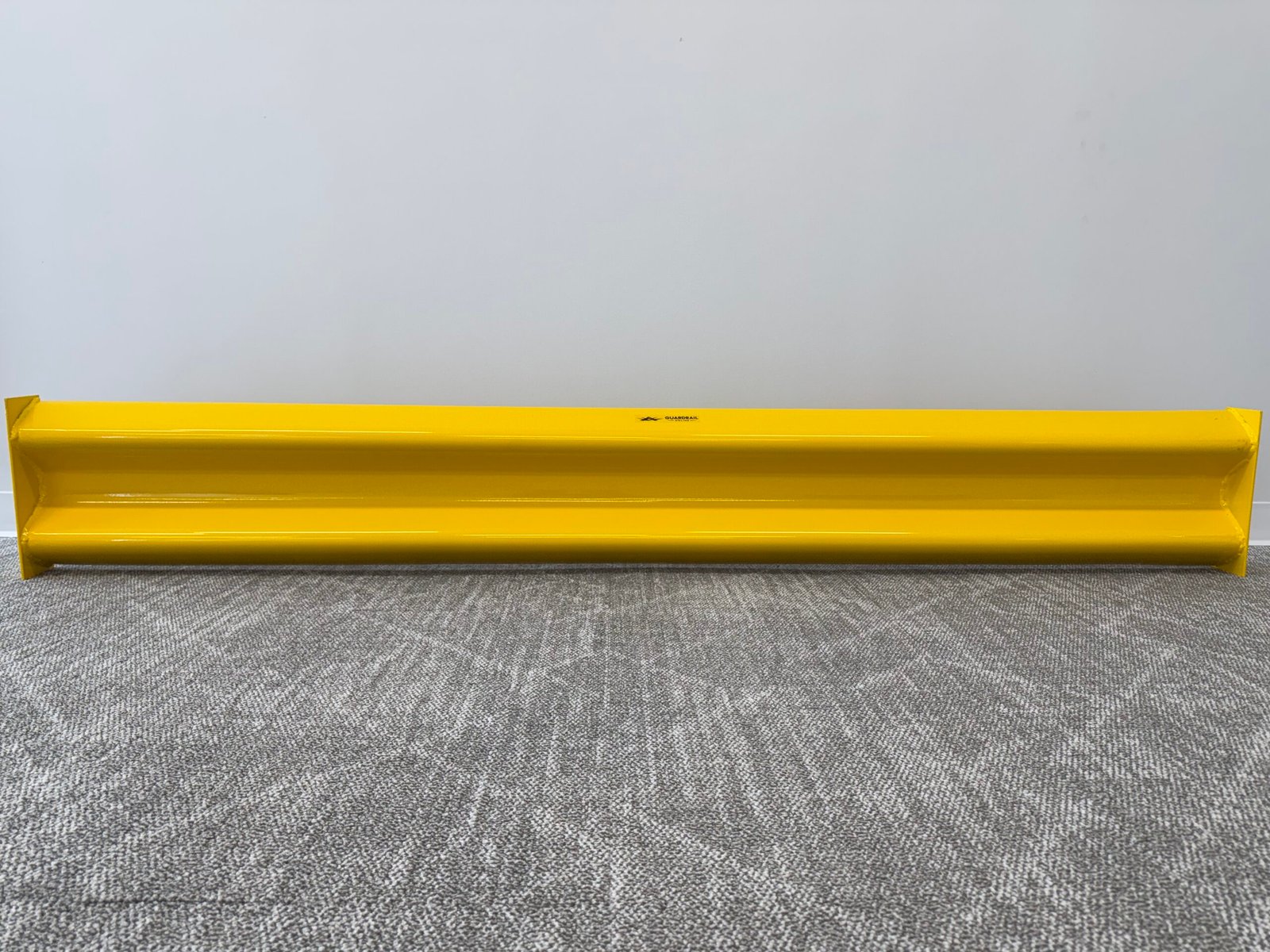

- The standard 12.2” high rail is welded to two plates on each side.
- Each plate has two pre-punched slotted holes for connection.
- Secured to the post using 4 bolts per rail (12 mm D x 160 mm (6- 3/10’’)).
- Mounted between the inside faces of the posts.
- Pre-galvanized and powder-coated dual-layer protection
- Safety yellow finish (RAL 1023)
- When properly installed, rated to withstand a 10,000 lb. impact at 4 mph
| Material | Height | Thickness | Finish | Bolts |
| Galvanized Steel | 12.2” | 11-GA (0.118”) | Powder-coated Safety Yellow (RAL 1023) | 4 bolts (12 mm x 6-3/10″ ) |
| Nominal Length | Exact Length (In) | Weight Ea (Lbs) |
| 2ft | 19.28 | 16.57 |
| 3ft | 31.28 | 24.07 |
| 4ft | 43.28 | 31.57 |
| 5ft | 55.28 | 39.10 |
| 6ft | 67.28 | 46.58 |
| 7ft | 79.28 | 54.10 |
| 8ft | 91.28 | 61.58 |
| 9ft | 103.28 | 69.10 |
| 10ft | 115.28 | 76.59 |
Note: Nominal length is measured center to center of posts.
Rail Hardware Kit Information (1 Qty):
- Post to rail connection.
- (4x) M12 x 1.75-160mm (6-3/10″) hex head bolt. Grade 8.8
- (8x) M12 washer. Grade 8.8
- (4x) M12 Hex nut. Grade 8.8
Key takeaways
- One 12.2″ high rail in the length you select plus hardware
- Galvanized and powder-coated safety yellow
- Fits our heavy duty single and double height posts
- Good for replacing an impacted rail without replacing posts
Frequently asked questions
When should I buy a single beam?
When a rail is damaged by an impact but the posts are still sound, or when you need an extra rail for a custom layout.
What lengths are available?
Select the rail length on the product options. Exact lengths account for post spacing so rails fit between post faces.
Does it come with bolts?
Yes, each beam includes one rail hardware kit.
Where does it ship from?
Kits ship from our Dallas, TX warehouse to sites across Texas and the US.
