Description
Quick answer: The heavy duty double height post kit is a single 41.5″ post with its hardware. Use it to replace a damaged post or to add a corner, end or extra post to an existing double height guardrail run.
Post Information (1 Qty):

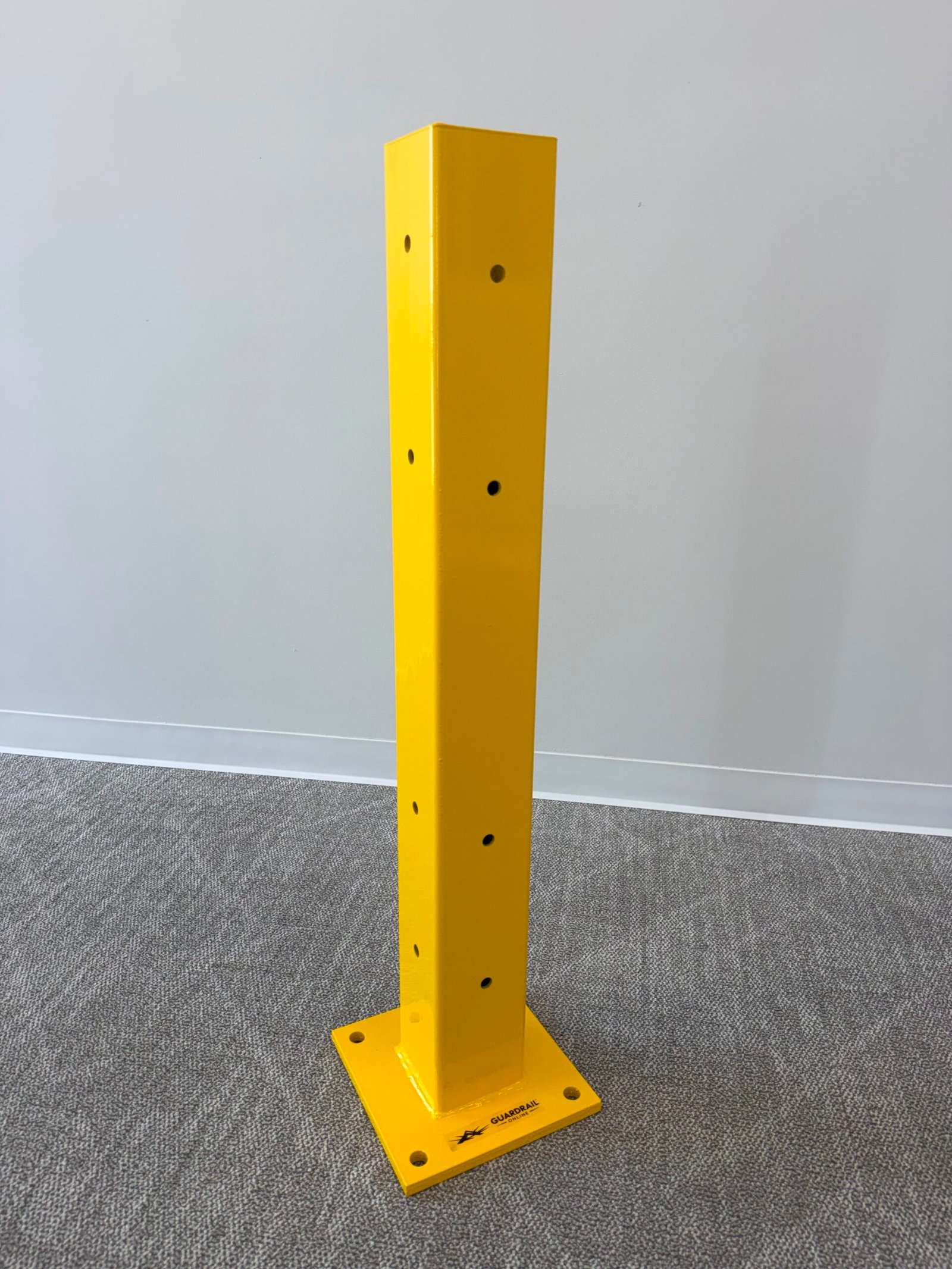

- 41.5″ double height post
- Supports 2 panel rails
- Top rail height of 40.16″, bottom rail height of 17.61″
- Made from 4.72″ x 4.72″ x 3/16″ thick steel
- Posts come centered on base plate
- Each post is welded to a 10” x 10” x 5/8” thick base plate
- Posts are anchored to concrete using (4x) 5/8” x 5” wedge anchors
- Pre-galvanized and powder-coated dual-layer protection
- Safety yellow finish (RAL 1023)
- When properly installed, rated to withstand a 10,000 lb. impact at 4 mph
- Weight 56.7lbs
Post Hardware Kit Information (1 Qty):
- Post to concrete connection.
- (4x) 5/8″ x 5″ wedge anchors
- Post cap
- (1x) Black polyethylene post cap
- Redundant hole plug
- (8x) Yellow polyethylene hole plugs
Key takeaways
- One 41.5″ post plus post hardware kit
- Accepts two rails for double height protection
- Use for replacements, corners and custom layouts
- Galvanized with safety yellow powder coat
Frequently asked questions
When do I need a separate post?
To replace a damaged post, add a corner or end post, or build a custom layout that the kits do not cover.
Does it work with the pedestrian gate?
Yes. The adjustable pedestrian gate mounts to double height posts, which are sold separately.
Are rails included?
No. Rails are sold as the heavy duty guardrail beam or within the kits.
Where does it ship from?
Kits ship from our Dallas, TX warehouse to sites across Texas and the US.
