What Is A Lift Out Adapter for Guardrail Posts, And How Does it Work?

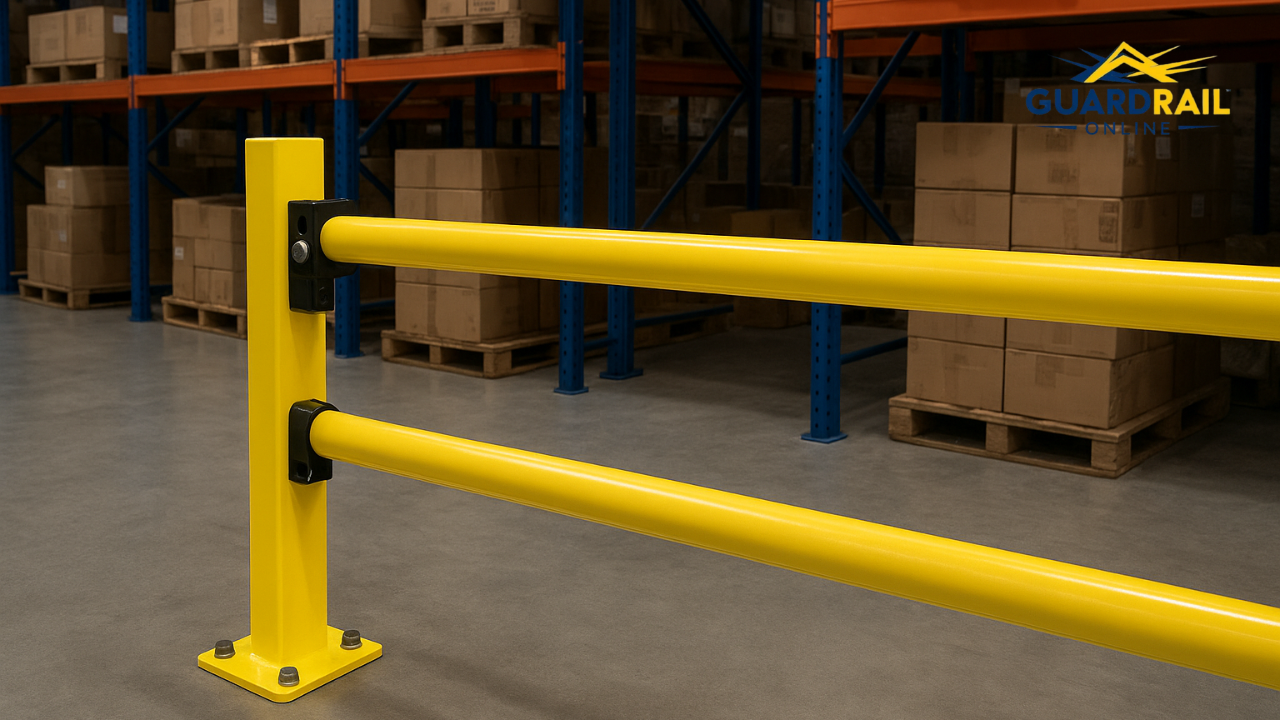

Lift Out Adapter for Guardrail Posts

A lift-out adapter turns one section of a warehouse guardrail run into a removable opening. The rail sits in a pair of adapters attached to the posts, so it can be lifted out when you need access and dropped back in when you are done. The rest of the run stays fixed and keeps protecting people, racking and equipment.

This guide explains what a lift-out adapter is, where it makes sense, how a lift-out section works and what to check before you order. Guardrail Online is based in Dallas, TX and supplies heavy-duty guardrail systems and accessories to warehouses across the US.

Quick answer: A lift-out adapter is a pair of brackets that attach to guardrail posts and hold one rail so it can be lifted out and dropped back in. It turns a section of a fixed guardrail run into a removable opening for occasional access to racking, machinery or service points. On double height guardrail, adapters must be used on both the top and bottom rails.

Key takeaways

  • Lift-out adapters make one guardrail section removable without unbolting the run.
  • Use them for occasional access; use a pedestrian gate for frequent foot traffic.
  • Our adapter is sold as a pair in safety yellow and weighs 12.2 lbs per pair.
  • On double height guardrail, fit adapters to both the top and bottom rails.

In this guide

What Is a Lift-Out Adapter for Guardrail Posts?

A lift-out adapter is a bracket that attaches to a guardrail post and holds the end of a rail. Fitted in pairs, one on each post at either side of an opening, the adapters let that rail be removed and replaced without taking the posts or the rest of the run apart.

A standard bolt-on guardrail connects each rail permanently to its posts. That is the right choice for most of a run, but it means any access through the barrier requires unbolting rails. A lift-out section solves that for the few places where access is needed regularly.

Where a Lift-Out Section Makes Sense

  • Rack faces and storage areas that are restocked or audited from the aisle side.
  • Machinery and equipment that needs periodic maintenance access.
  • Utility panels, valves and service points behind a guardrail.
  • Areas where large items occasionally need to pass through a protected zone.

If people on foot need to pass through an opening many times a day, a pedestrian safety gate is usually the better fit. Lift-out sections suit occasional access.

Key Features of Our Lift-Out Adapter

  • Sold as a pair that attaches to the guardrail posts on each side of the removable section.
  • Lets the rail lift out for access to the space behind the guardrail, then drop back in.
  • Safety yellow finish (RAL 1023) to match the rest of the guardrail system.
  • Weighs 12.2 lbs per pair.
  • Adds a small extra gap between posts, so on double height guardrail it must be used on both the top and bottom rails to keep the spacing consistent.

See full details on the lift-out adapter for guardrail post (pair) product page.

How a Lift-Out Section Works

  1. Decide where you need occasional access, such as a rack face, a machine or a service panel.
  2. Fit the adapter pair to the guardrail posts on either side of that opening, following the instructions supplied with the product.
  3. Seat the rail in the adapters. The section then works like any other part of the run.
  4. To open it, lift the rail out of the adapters. To close it, drop the rail back in and check it is fully seated before forklift traffic resumes.

While the rail is out, that opening is unprotected. Keep the section closed whenever access is not needed.

Bolt-On vs. Lift-Out: Which Do You Need?

Most guardrail runs are bolt-on throughout, with lift-out sections only where access is needed. For a side-by-side comparison, see our guide to bolt-on vs. lift-out guardrail.

Shop the systems in this guide: compare our heavy duty warehouse guardrail systems and the full range of forklift barriers for warehouses, including bollards, rack guards and door track guards, all shipped from our Dallas, TX warehouse.

Frequently Asked Questions

Yes. Because the adapter adds a small extra gap between posts, it must be used on both the top and bottom rails of a double height section to keep the spacing consistent.

The adapter is sold as a pair, which covers one rail. A single height opening needs one pair; a double height opening needs one pair for the top rail and one for the bottom rail.

No. While the rail is out, the opening has no barrier, so keep the section closed whenever access is not needed and check the rail is fully seated before traffic resumes.

Use a lift-out section for occasional access, such as maintenance or restocking. Use a pedestrian safety gate where people walk through the opening regularly.

Conclusion

A lift-out adapter gives you access through a guardrail run without giving up protection everywhere else. Use it for occasional access points, keep the section closed when it is not in use, and pair it with the rest of your warehouse guardrail system. Shop the lift-out adapter pair or contact our team to plan your layout.

Written by the Guardrail Online team. Reviewed and updated in October 2026.
