Description

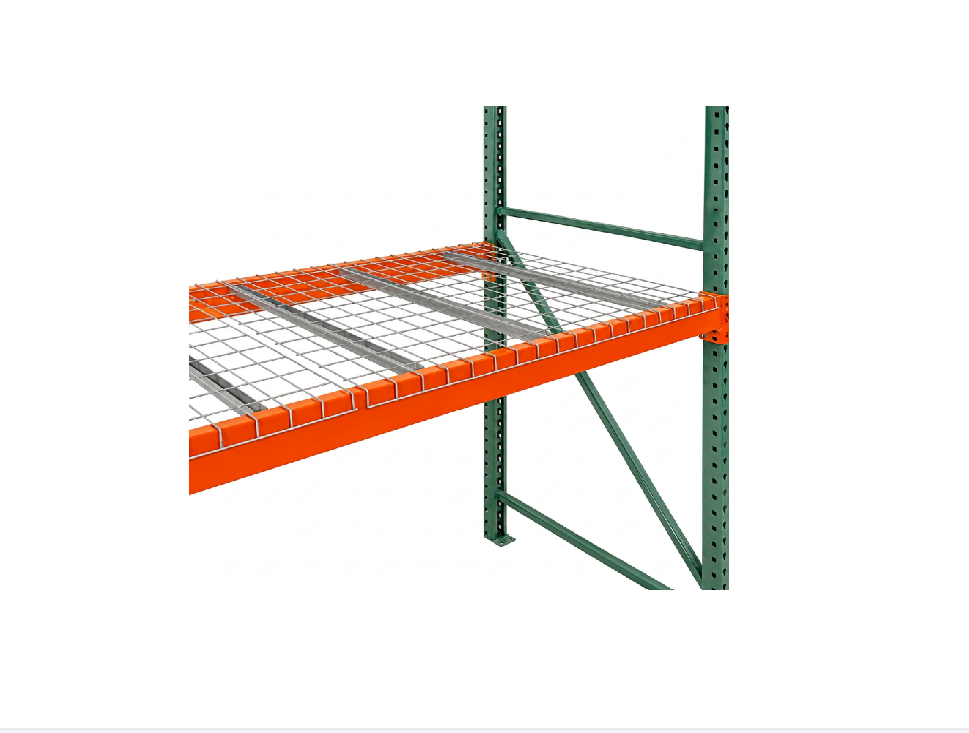

Pallet rack wire decking turns open beam levels into a safe, solid storage surface for pallets, cartons and loose stock. These wire mesh decks drop onto standard step beams with waterfall edges, let light and sprinkler water pass through, and are rated up to 2,500 lbs per deck (evenly distributed). Pair them with our pallet rack beams and pallet rack uprights to complete each bay.
Not sure which size you need? Read our pallet rack wire decking guide.
Wire Deck Information (1 Qty):
Wire mesh decking for pallet rack levels, giving a secure surface for pallets and cartons while allowing light and sprinkler water to pass through.
- Available in 24″, 36″, 42″ and 48″ depths with 46″, 52″ and 58″ widths
- Gray powder-coat finish
- 2.5″ x 4″ welded wire mesh
- Each deck includes 3–4 U-channel supports underneath for added strength
- Waterfall edges, designed to fit standard step beams
- Dimensions: depth x width (based on size selected)
- Weight: 9.4 lbs to 25.7 lbs (based on size selected)
- Width guide: 46″ decks for 8′ beams, 52″ decks for 9′ beams and 58″ decks for 10′ beams (2 decks per level)
Deck Capacities (per deck, evenly distributed load):
- 24″ x 46″: 2,000 lbs
- 36″ x 46″: 2,500 lbs
- 42″ x 46″: 2,000 lbs
- 42″ x 52″: 2,500 lbs
- 42″ x 58″: 2,500 lbs
- 48″ x 46″: 2,500 lbs
- 48″ x 52″: 2,500 lbs
- 48″ x 58″: 2,500 lbs
Additional Information:
- Pallet rack uprights and beams sold separately
- Ships directly from the supplier; lead times will be confirmed at the time of order
- Don’t see the size you need? Contact us for other deck depths and widths.
