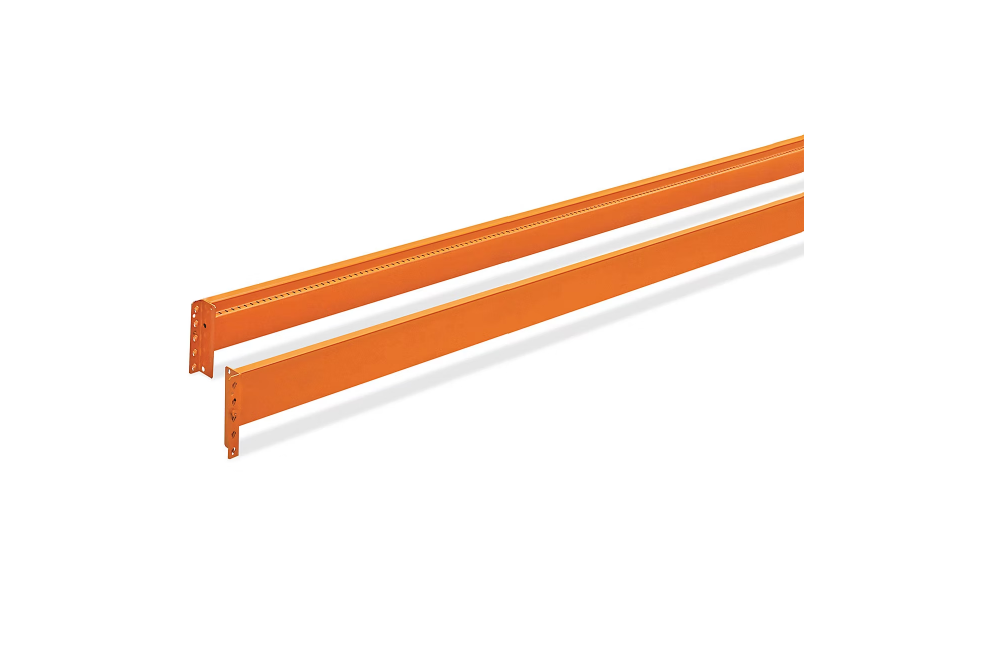

Pallet Rack Beams

Pallet Rack Beams

Consists of 1 – teardrop pallet rack beam (size selected).

Price range: $24.00 through $75.00

Are You An Installer Or Reseller? Contact Us For Trade Pricing

Description

Quick answer: Our pallet rack beams are teardrop step beams in 4′ to 12′ lengths with 3″ to 6″ face heights and capacities up to 6,337 lbs per pair (evenly distributed), from $24 each. They fit standard teardrop upright frames. See our beam sizes and capacity chart to choose the right size.

These teardrop pallet rack beams are step beams for building new pallet rack bays or adding storage levels to existing teardrop racking. Choose lengths from 4′ to 12′ and face heights from 3″ to 6″, with capacities up to 6,337 lbs per pair (evenly distributed). Add pallet rack wire decking for a safe load surface and match them with our teardrop upright frames.

Not sure which size you need? Read our pallet rack beam sizes and capacity chart.

Beam Information (1 Qty):

Teardrop-style step beam for building new pallet rack bays or adding storage levels to existing racking.

  • Available in 4′, 8′, 9′, 10′ and 12′ lengths with 3″ to 6″ face heights
  • Orange powder-coat finish
  • Teardrop end connectors, compatible with standard 2″ on-center teardrop upright frames
  • Dimensions: length x face height (based on size selected)
  • Weight: 10.9 lbs to 55.1 lbs (based on size selected)
  • Compatible with most standard teardrop pallet racking systems

Beam Capacities (per pair, evenly distributed load):

  • 4′ x 3″: 5,533 lbs
  • 8′ x 4″: 4,027 lbs
  • 8′ x 4.5″: 5,216 lbs
  • 8′ x 5″: 6,264 lbs
  • 9′ x 5″: 5,568 lbs
  • 10′ x 5″: 5,145 lbs
  • 12′ x 6″: 6,337 lbs

Additional Information:

  • Uprights, wire decking and floor anchors sold separately
  • Ships directly from the supplier; lead times will be confirmed at the time of order
  • Don’t see the size you need? Contact us for other beam lengths and face heights.

Key takeaways

  • Beams are sold individually; each storage level needs a pair.
  • Capacity is rated per pair with the load evenly distributed.
  • Taller face heights carry more weight over longer spans.
  • Add wire decking for cartons and loads that do not span both beams.

Frequently asked questions

How many beams do I need per level?

Two: one front and one back beam for each storage level in each bay.

How much weight can a pair of beams hold?

Up to 6,337 lbs per pair evenly distributed, depending on the length and face height you choose.

What beam length should I choose?

Fit your pallets side by side with clearance on each side. Many facilities use 8′ beams for two 40″ wide pallets per level.

Additional information

WeightN/A
Shipping DimensionsN/A
Size (Length x Depth)

4' x 3", 8' x 4", 8' x 4.5", 8' x 5", 9' x 5", 10' x 5", 12' x 6"
